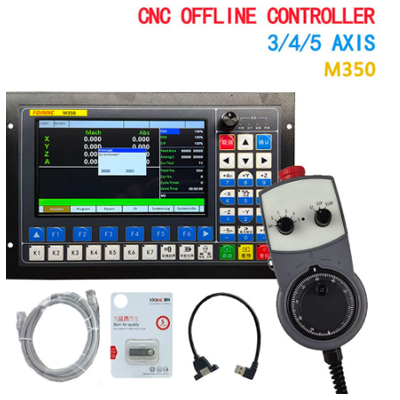

CNC machining engraving New Offline Controller M350 3/4/5 Axis+handwheel 1MHz G-Code U-disk

Introduction:

The system M350 is a professional 3-5 axis motion controller based on an embedded platform. It is equipped with a 7-inch full-color screen, full keyboard input, and customizable function keys to make user operation more convenient. It supports multi-process, straight-line tool magazine, circular Disk tool magazine function. The interface and structure adopt the mainstream method in the market, with simple operation, easy to learn and understand, and convenient installation. The system uses advanced adaptive speed forward control algorithm, which has the characteristics of high processing efficiency and good surface quality. Meet the needs of various engraving machines, engraving and milling machines, cutting

Feature

* Max. 5 Axis;2-4 Axis linear interpolation, any 2 axes circular interpolation;

* 7 inch full color display screen;resolution ratio: 1024*600,40 operation keys

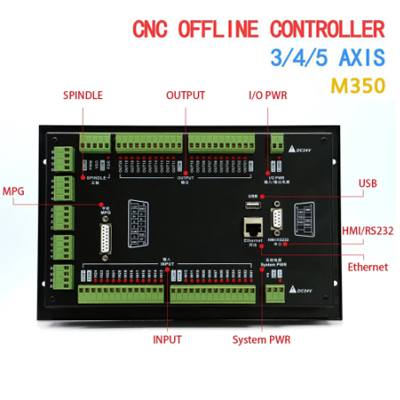

* 24 photoelectric isolated digital inputs,21 photoelectric isolated digital outputs

* Analog spindle control 0-10V spindle control, support PWM Output

* Magazine type: Multi-operation, straight row tool magazine and disc Magazine

* Probe Mode: Support auto-probe and manual probe

* Probe of Fixed position of tool sensor, Probe of Floating tool sensor, first probe/second probe;

* Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;

* Interpolation Algorithm:S type, circular hard algorithm, circular soft algorithm;

* Language: Chinese, English;

* Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on

* Network: Support file share and online machining the remote files

* Differential output for Pulse and Direction signal, max. interpolation pulse output frequency 1Mhz

* Spindle control mode, Mul-speed (4 lines 16 kinds speed), Servo Spindle

* Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360, and so on.

* The control system can preview the processing path before machining, and it makes the system more steady, working smoothy and precise

* Support high-speed machining in continuous Polyline segment, the system can choose a most efficient algorithm automatically from different kinds Polyline segment algorithm;

* Support unlimited size file for machining

* Support Breakpoint resume, “Power Cut” recovery, Try Cut, Start from Nearest Point, Start from the specific line

* Support time-lock function;

* Support 4 kinds of operation rights: visitor, operator, admin, super admin
