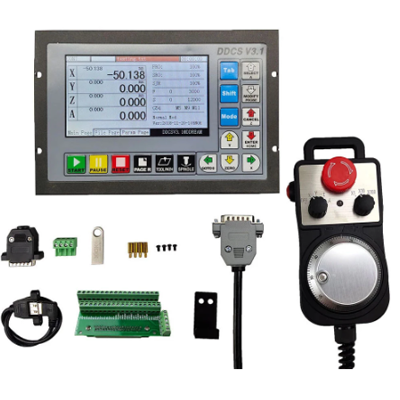

DDCSV3.1 3/4 Axis G Code CNC Offline Stand Alone Controller For Engraving Milling Machine DDCS V3.1+ 4-axis E-Stop MPG Handwheel

Performance parameters:

1) 16-channel optocoupler isolated digital input interface, 3 optocouplers isolated digital input and output;
2) The new version enhances the algorithm, supports flexible circular interpolation, and corrects the deficiencies in the circular interpolation commands in the old version;
3) 1 channel 0-10V spindle speed control analog output interface (can be modified into PWM output);
4) 3-4 axis pulse direction uses differential output, the maximum interpolation pulse output frequency is 500Khz;
5) ARM9 main control chip, FPGA core algorithm chip;
6) 5 inches TFT screen, resolution: 480x272, 17 operation keys;
7) The main control equipment is 24VDC power input, the current capacity requirement is not less than 0.5A;
8) The IO port power input is also 24VDC, and the current capacity requirement is not less than 0.5A; all IO ports do not need to be configured with an external power supply, such as
Connect relays and the like;
9) Support U disk to read G command, G command file size is not required;
10) Support standard MPG;
11) Support panel button single-axis manual jog and linkage and distance operation;
12) Support fast specified operation position operation;
13) Support multi-coordinate system (automatically save power down);
14) With breakpoint memory, power-down automatic protection function;
15) Support to save the breakpoint function (automatically save by pressing the pause button during operation, automatically save after power off);
16) The controller controller only supports NPN type limit switches;
17) The new version is made of sheet metal, which is atmospheric and has better anti-interference ability.

Features:

1) American and imperial units in the system can be converted;
2) Handwheel MPG master control page, file page and configuration page, extended keyboard can also operate and edit controller;
3) New trial cut function, single line processing,
4) The tool setting function is increased to 4 modes;
5) The software is greatly adjusted and optimized, and the parameter configuration is greatly increased to make the performance more powerful and reliable;
6) Controller language is Chinese/English/Russian
