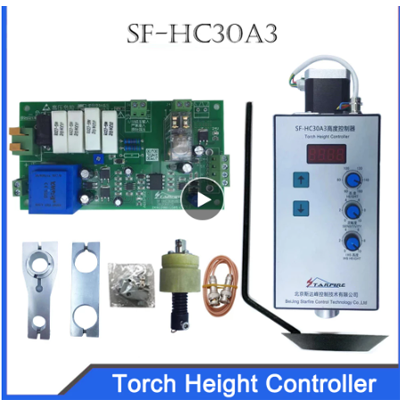

Automatic Torch Height Controller THC for cnc plasma flame cutting machine Arc voltage gas cutter SF-HC30A3 DIY kit accossories

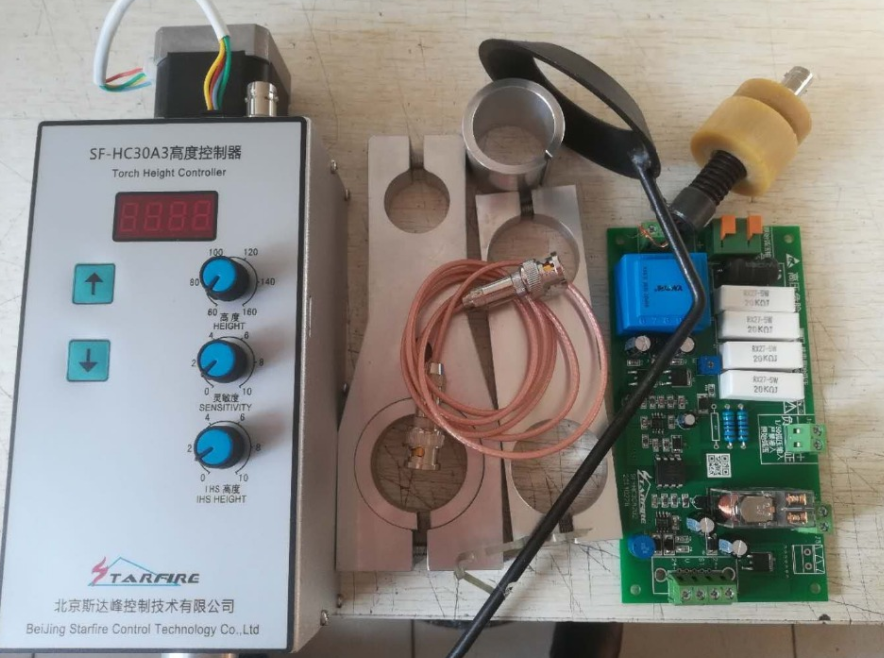

SF - HC30A3 updated

Stepper motor replaces conventional dc motors

SF - HC30A flame/plasma cutting torch height controller adopts the stepper motor control technology, to subvert the traditional dc motor by high mode, making rapid, smooth, and greatly improve the service life of the product.
Mechanical hoisting device and high controller integration
The integrated design of detector, controller and actuator, which enables the product to be highly integrated and adjust the journey 10Cm;
All digital technology
The circuit adopts the technology of patch, which is not available, and the full digital control technology ensures the high reliability of the product.
Can be used in bad environment
The shell is designed to prevent and interfere with the design of waterproof and waterproof aluminum box, especially suitable for flame cutting, high temperature of plasma cutting and high electromagnetic interference.
Multiple interfaces are easy to use
The interface is easy to control, suitable for all flame cutting, plasma cutting nc system, and can be used separately
Key technical indicators
power requirement: DC 24V plus or minus 2 V 3 A
Applicable motor: 17hs (42) series of stepper motors
Manual adjustment range: 0 ~ 100 mm
Automatic high control range: 3 ~ 30 mm
Automatic adjustment speed: 3000 mm/min
Control accuracy: plus or minus 0.5 mm
Box size: 155 x 87 x 71 mm
L working environment temperature: - 10 ~ 50 ℃
Weight: 1.5 Kg
Detection system: capacitive detector, arc pressure height detector
