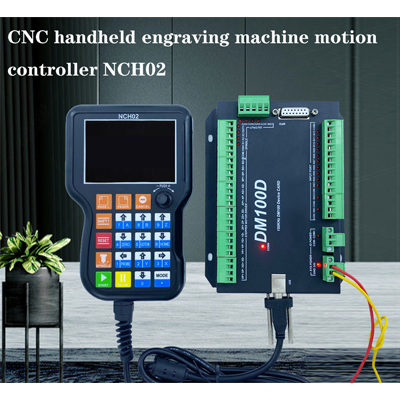

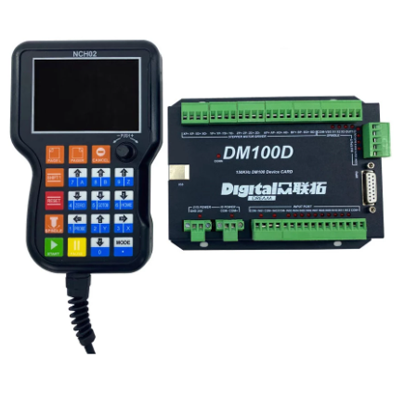

NCH02 CNC Handle Motion Controller mach3 3/4/5axis 125 KHz Pulse U-disk Read G-CODE CNC engraving machine motion control system

Introduction:

NCH02 is a CNC system without computer. Only need a U-disk within G-CODE file,
NCH02 can read the G file and run the G file.

Port Definition and connection：

1.USB interface

2. Main power interface

3. Input and output power

4. Input interface such as limit origin

5.MPG interface

6. Universal output interface

7. Spindle control output interface

8. Drive control interface

Performance parameters:

Read G-CODE from U-DISK;
 Operation without computer;
 8 ports photoelectric isolated input interface ；
 5 ports photoelectric isolated output interface ；
 1 port 0-10V spindle speed analog output interface(can change to PWM output) ；
 can support 5 axis stepper systems,125KHz pulse output for every axis ；
 ARM motion control chip ；
 main device is 24VDC power supply input, current should higher than 1A
Support standard MPG and NVMPG;
 3.5'' TFT screen;
 19 user key;
