DDCS-EXPERT 3/4/5 Axis CNC Standalone Offline Controller Support Close-loop Stepper/ATC Controller Replace DDCSV3.1

DDCS-Expert Brief technical feature:

1) Max. 5 Axis; 1M Hz output frequency for each axis; 2-4 Axis linear interpolation, any 2 axis circular interpolation;

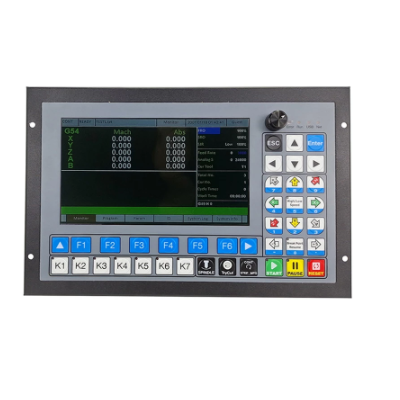

2) 7 inch full color display screen; resolution ratio: 1024*600, 40 operation keys;

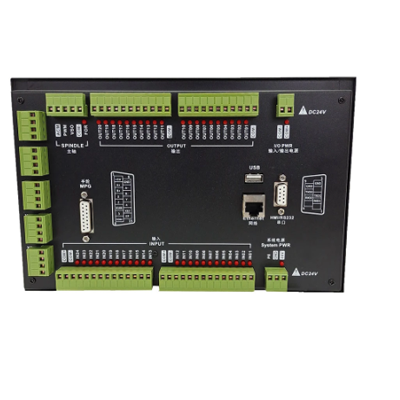

3) 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;
4) Analog spindle control 0-10V spindle control, also support PWM Output;
5) Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry type Magazine, disk type magazine;
6) Probe Mode: Supprt Floating Probe and Fixed Probe;
7) Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;
8) Interpolation Algorithm: S type, circular hard algorithem, circular soft algorithm;
9) Language: Chinese, English;
10) Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on;
11) Network: Support file share and online machining the remote files by Ethernet;
12) Spindle control mode support Multi-speed (3 lines 8 kinds speed), 0-10V Analog output, and servo spindle output;
13) Compatible with standard G-code, support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on;
14) The control system can preview the processing path before machining, and it makes the system more steady, working smoothy and precise;
15) Support high speed machining in continuous Polyline segment, system can choose a most efficient algorithm automatically from different kinds Polyline segment algorithm;
16) Support un-limited size file for machining;
17) Support Pause Breakpoint resume, “Power Cut” recovery, Start from the specific line;
18) Support time-lock function;
19) Support 4 kinds operation rights: visitor, operator, admin, super admin;
20) Support function of “Try cutting” (handwheel guiding) and “Single-stage processing mode” and so on;
21) Support the fuction of Back to orignal point
22) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;
22) The Power Supply for IO Port is 24VDC, minimum current is 0.5A; By the IO power
supply,system already supply the power to IO ports.So no need the external power supply.
