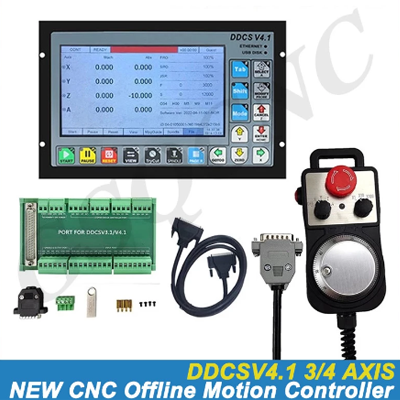

Performance parameters:

1) 7-inch screen, 17 keys; 18 optocoupler isolated digital input interfaces, 3 optocoupler isolated digital input ports;

2) The new version strengthens the algorithm, and introduces a new algorithm for motion planning, which makes the path of small line segments smoother through configurable contour errors;

3) 1 channel 0-10V spindle speed control analog output interface, and the spindle can be configured as a servo spindle;

4) 3-4 axis drive mode adopts differential mode and double pulse mode for customers to choose, the maximum output frequency of interpolation pulse is 500Khz;

5) ARM9 main control chip, FPGA core algorithm chip;

6) 7-inch TFT screen; size: 1024x600 pixels, resolution: 72 pixels/inch;

7) The main control device is 24VDC power input, and the current capacity is required to be no less than 0.5A; the IO port power input is also 24VDC, and the current capacity must be

It is required to be no less than 0.5A; the main control power supply power supply control system, the IO port power supply power supply IO; when there is no power supply to the IO port, all IO ports are invalid;

8) Support standard MPG;

9) Support single-axis manual jogging and linkage and fixed-distance operation of panel buttons;

10) Support running specified line and nearest point operations;

11) Support floating tool setting, fixed tool setting, corner point setting and tool length measurement

12) Supports array processing, sequential processing, plane milling and cylindrical milling;

13) Support the offset adjustment of XYZA four-axis;

14) Support pause breakpoints, power-off breakpoints and load breakpoints

15) Support multi-workpiece origin operation, users can save origin and load origin as needed

16) Support the centring operation of X and Y axis;

17) Support simulation operation and during simulation, you can adjust the magnification to carefully observe whether the programming path is in line with expectations, and perform software limit

Bit check, you can pause at will during the simulation, after pressing the start button, the system will start execution from the simulation pause breakpoint

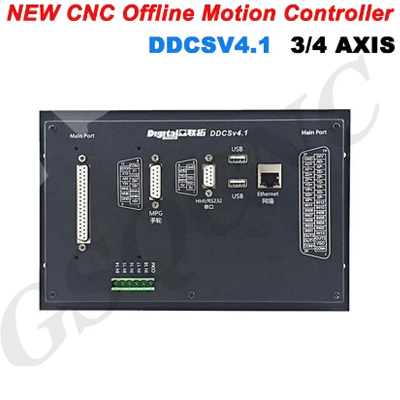

18) The communication between the controller and the computer can be realized through the Ethernet connection port, which is convenient for operations such as file reading and copying;

19) The memory of the controller is 1G; the G command can also be read from the U disk, and the file size of the G command is not required;

speech pack;

20) The language of the controller adopts international coding, and supports basically all languages. Customers can make various languages according to their own needs.

21) DDCS V4.1 controller only supports NPN type limit switch;

22) The use rights of the controller include operator, administrator and super administrator.
