Servo drive

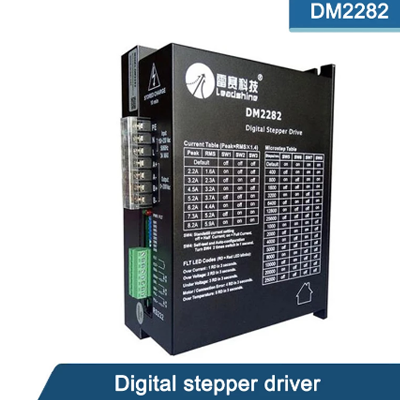

Leadshine DM2282 2 phase digital stepper driver for 110/130 stepper motor 2.2~8.2A work 80~220VAC replace MD2278 ND2278

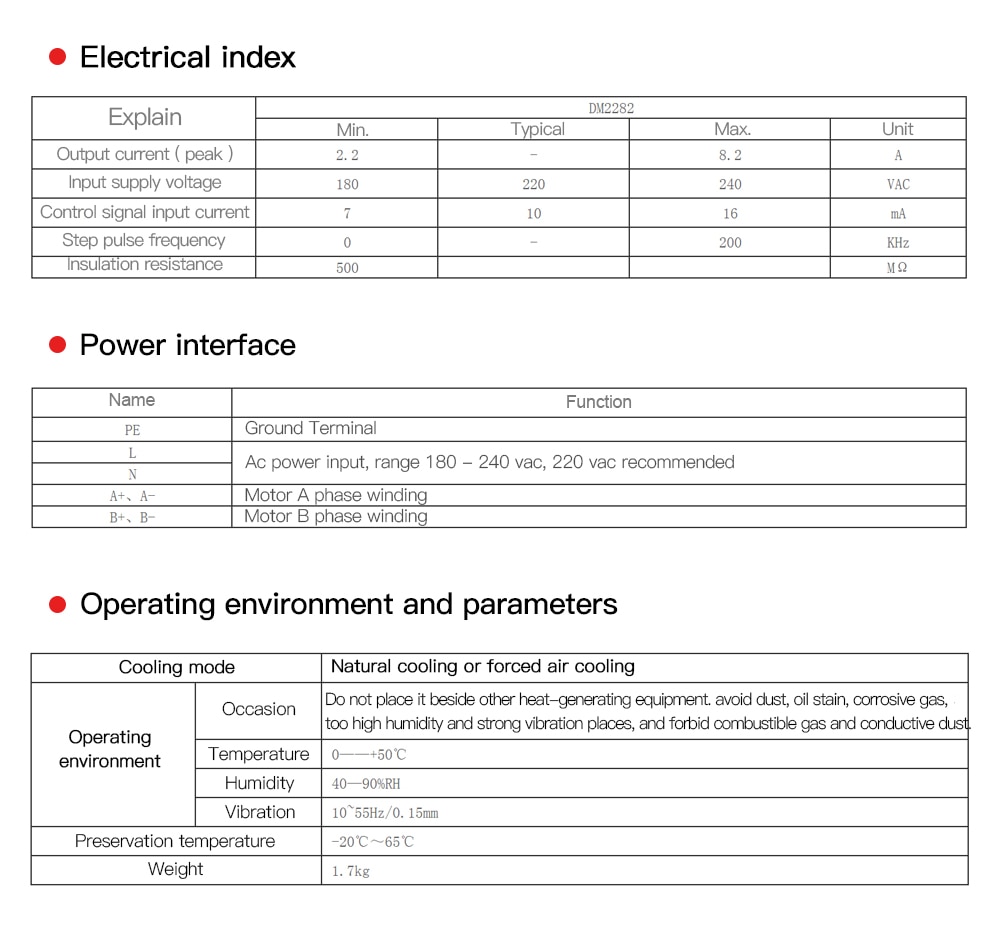

specification:

*Can drive 4-wire, 8-wire two-phase stepper motor

*Voltage input range: 180~240VAC

*Maximum current: 8.2A, resolution: 0.1A

*Subdivision range: 400~25600ppr

*Signal input: differential/single-ended, pulse/direction or double pulse

* Impulse response frequency: 200KHZ
