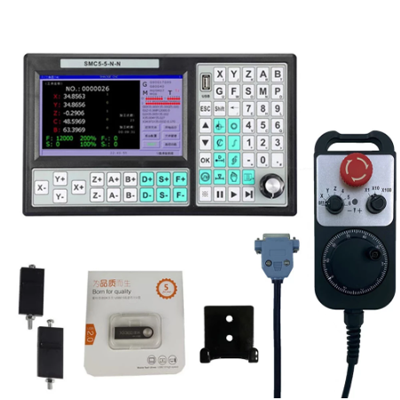

Special offer hot 5 axis offline CNC controller set 500KHz motion control system 7 inch screen 6 axis emergency stop hand wheel

Product ID：Control series
QQ：1300198164
Phone: +8618981381223
Tel: +8618981381223
Email: hmtechcnc@gmail.com
Time: 2022-10-27 20:48:30
FEEDBACK

Introduction:

The control system is the newly developed "motion controller" using high-performance 32-bit CPU and high-performance FPGA, equipped with a seven-inch LCD display, user-friendly window-type human-machine interface, memory with external USB port and built-in TF card (user Optional), large storage space, working voltage 12-24 volts ultra-wide input, touch-operated keyboard.

The system has the characteristics of high reliability, high precision, low noise and convenient operation. Simple, clear parameters make your operation easy and fast. The input/output setting function is convenient for your use and maintenance.

Features:

1.Five-axis linkage

2.Multi-micro multi-line segment forward control algorithm

3.Five-axis linear interpolation and five-axis multi-micro multi-line continuous interpolation

4.Broken line continue to control

5.Power-down storage coordinate function

6.Support handwheel control interface.
