One anti-collision Holder 20mm-35mm
Two anti-collision photoelectric switches
Model: JYKB-150-DC24V-GH for flame and plasma cutting) 1250mm/min
Model: JYKB-150-DC24V-GD for plasma cutting) 2150mm/min
Application:
Portable/desktop light duty CNC flame/plasma cutting machine.
Description:

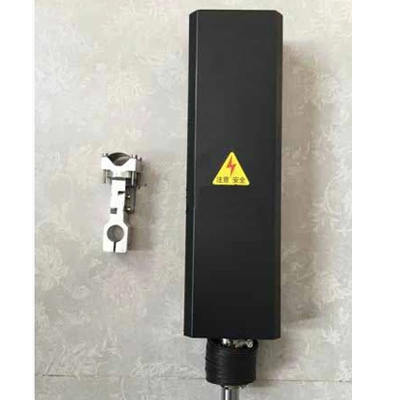

1. This flame/plasma cutting machine Z-axis torch lifter is driven by DC gear motor to lift the torch up & down
2. The most important part of the device, which is to keep the machine's cutting accuracy and to support plasma arc positioning function, is equipped with NPN proximity switches
3. This lifter's machenical movement part is made of Taiwan TBI ballscrew, standard linear shaft(SFC) & linear slider on the ends; torch clamper/holder is made of bearing steel, and fasterned by linear sliders, which is to ensure the lifter movement's stability & verticality
4. Convenient to install, work simple, improving the work efficiency
Air control plug definition:
1 foot --D +; (motor positive)
2 feet --D -; (motor negative)
3 feet --Zero; (positioning normally open output)
4 feet --COM; (positioning normally open output)
Note: Built-in limit (reverse diode)
Parameter:
1. T-304 stainless steel screw
2. Includes jig (torch range 20mm-35mm)
3. Lift inside a plasma arc positioning
4. Aluminum body, the upper and lower aluminum sheet thickness of 8mm, forming a processing center
5. Four-core plug
6. Colour: black spray housing
7. Working stroke: 150mm
8. Working voltage: DC24V
