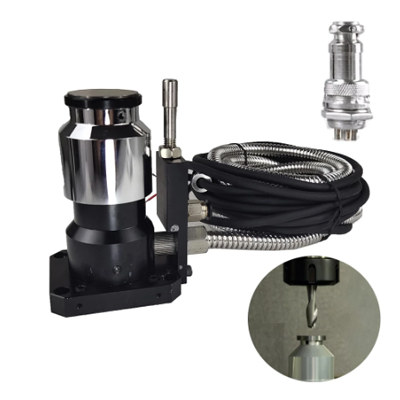

High-precision automatic tool sensor automatic checker Z-axis caliper for CNC milling machine

1. Product name:Tool setter CS-100K-30
2. Output mode:A: NO (normally open)
3. Itinerary:5mm
4. Touch point life:3 million times
5. Waterproof grade:IP 67
6. Repeat accuracy:0.001 mm (condition: operating speed 50-200mm/min)
7. Contact force:1.5N (The installation state needs to be vertical)
8. The quality of the knife surface:Super hard alloy, pure tungsten steel
9. Diameter of the knife face:Ø30mm
10. Surface treatment:Mirror grinding 4S
11. Contact point rating:DC24V 20mA (MAX) Recommended value 10mA resistive load
12. Cable specifications:Standard 3m oil resistance (length can be customized) (6 cores)
13. Indicator light:Normally closed LED lights when working
